DCC-EX Motor Shield
Price range: £42.99 through £64.99
A DCC-EX 8874 motor shield for Arduino-based command station builds, using DRV8874 drivers with integrated current sensing and optional 15V 5A power supply.
Description

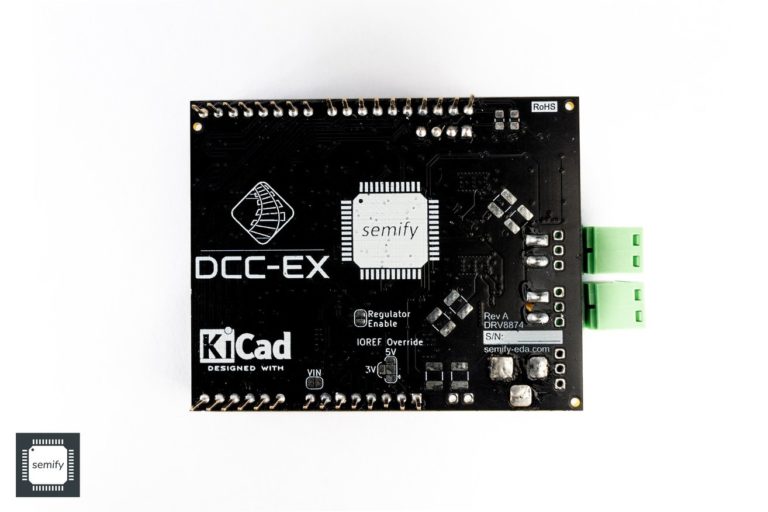

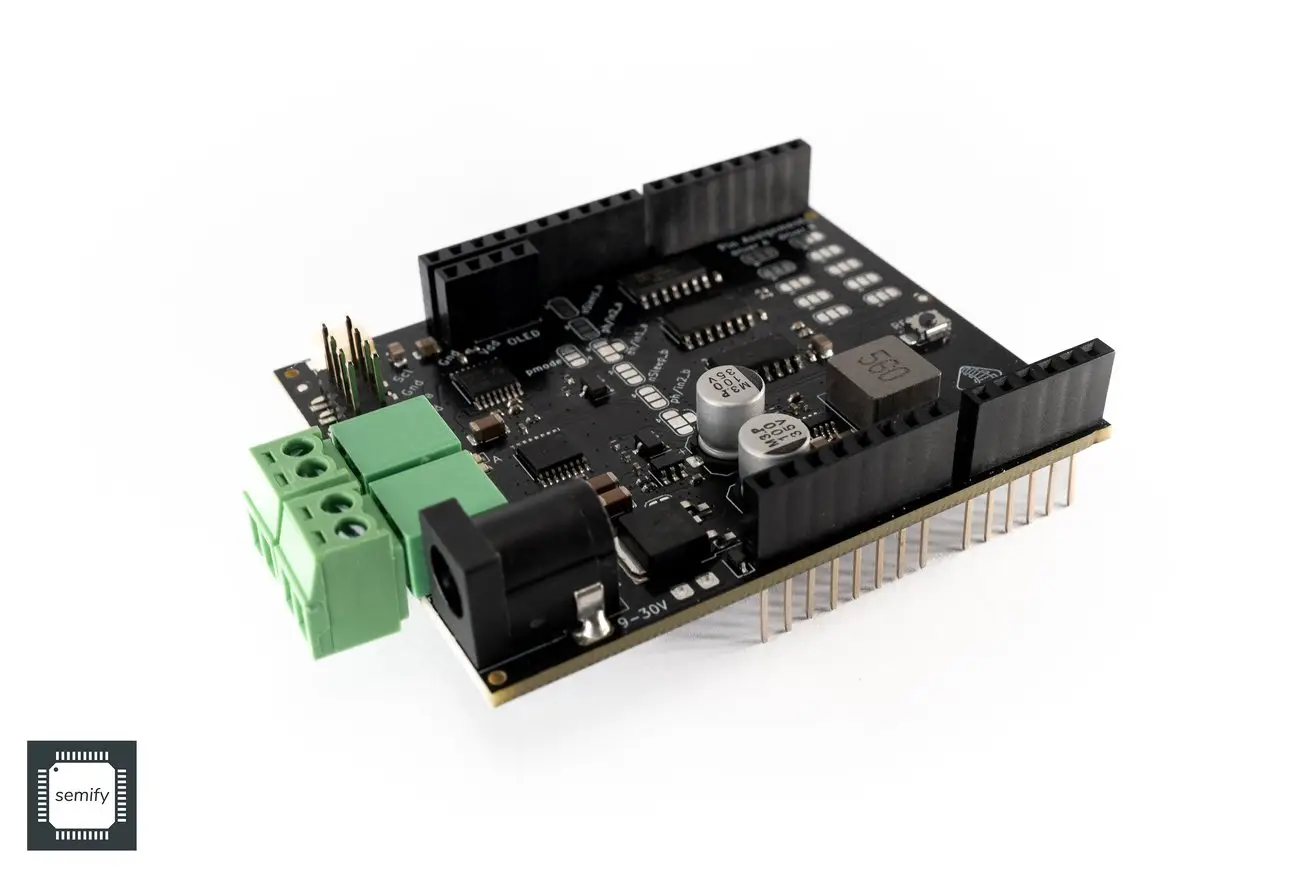

DCC-EX 8874 Motor Shield for Command Station Builds
The EX-Motorshield8874 is a DCC-EX compatible motor shield for Arduino-based model railway command station builds. It is pin compatible with the original Arduino Motor Shield Rev3, but offers improved electrical performance for higher loads and more robust DCC-EX use.
Key Features
- Designed for DCC-EX: ideal for DIY DCC-EX command station builds and upgrades.
- DRV8874 H-bridge drivers: based on two Texas Instruments DRV8874 motor drivers with integrated current sensing.
- Wide input supply range: onboard DC-DC buck converter supports Arduino power from a 9V to 30V input supply.
- Reverse polarity protection: helps protect the circuit if the power supply is accidentally connected the wrong way round.
- Status LED: gives a visual indication of supply status.
Compatibility and Use Cases
The 8874 motor shield is specifically designed for use with a DCC-EX command station or compatible Arduino-based DCC-EX build. It can also be used as a stronger replacement for an Arduino Motor Shield R3 in suitable electronics projects involving inductive loads such as relays, solenoids, DC motors and stepper motors.
Recommended Accessories
For a neater build, pair the board with a DCC-EX WiFi shield, a 3D printed DCC-EX case and a compatible 15V 5A DC power supply.
Setup Guides and Support
For build guidance, see the DCCEX setup guide and Arduino guide and sketches. If you are comparing the ready-to-run and DIY routes, start with which DCC-EX products CMMME supplies.
Reference
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Include Power Supply | Yes (15v 5a), No |
